Multi-Purpose Pressure Transmitters
Viatran general purpose pressure transmitters/transducers fulfil the need for many applications where a high accuracy pressure sensor is not a requirement and no special fittings are needed. They are used I variety of industries from aerospace, automotive, mining, etc. They are available in multiple outputs> Mv/v; v; and mA.

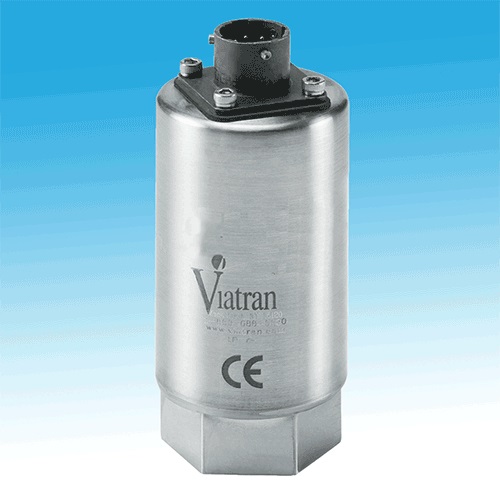

Model 24B Pressure Transducer
0-5 Vdc output, 0-100 to 0-30K psi, Solid Machined Sensor
Viatran’s 24B is one of our most versatile pressure transducers for industrial applications. The 24B measures from 0-100 PSI to 0-30,000 PSI with standard linearity of ≤ ±0.25% FSO.
Model 34B Pressure Transmitter
4-20 mA output, 0-100 to 0-30K psi, Solid Machined Sensor
Viatran’s 34B is one of our most versatile pressure transducers for industrial applications. The 34B measures from 0-100 PSI to 0-30,000 PSI with standard linearity of ≤ ±0.25% FSO.
mv/V output, 0- 3 to 15K PSI, High Overpressure
All welded stainless steel construction combined with sensors that are hermetically sealed with no adjustment controls provide an airtight and watertight transducer preventing contamination from the application environment.
3 mv/V output, solid machined diaphragm, 350Ω gages
The solid machined stainless steel diaphragm is designed for applications requiring high frequency pressure cycling and a stable output over the life of the instrument.
0-5 Vdc output, 3 thru 5K psi, Silicon Sensor
Viatran’s 24A is one of our most versatile pressure transducers for industrial applications. The 24A measures from 3 PSI to 5000 PSI (0.2 to 345 bar) with standard linearity of ≤±0.25% FSO.

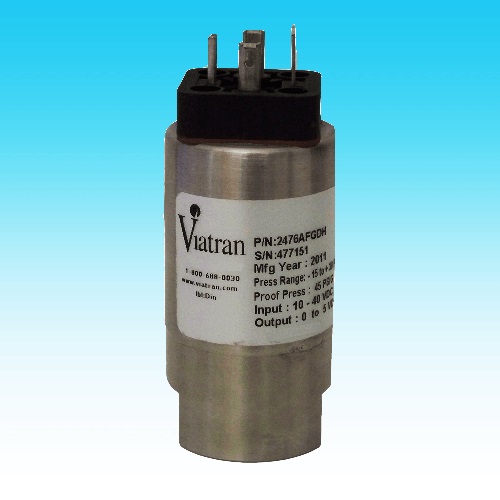

0-5 Vdc output, 0-3 to 20K psi
247 offers a solid, reliable pressure transducer with excellent noise immunity, repeatability and stability.
0-5 Vdc, 0- 3 to 15K psi, High Overpressure Protection
All welded stainless steel construction combined with sensors that are hermetically sealed with no adjustment controls provide an airtight and watertight transducer preventing contamination from the application environment.

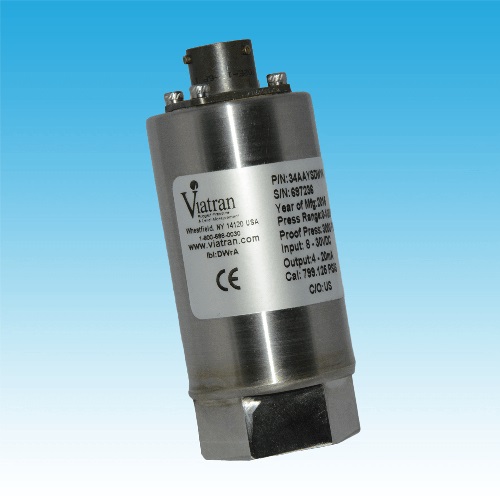

Model 34A Pressure Transmitter
4-20 mA output, 3 to 5K psi, Silicon Sensor
Viatran’s 34A is one of our most versatile pressure transducers for industrial applictions. The 34A measures from 3 PSI to 5000 PSI (0.2 to 345 bar) with standard linearity of ≤±0.25% FSO.
Model 347 Pressure Transmitter
4-20 mA output, 0-3 to 20K psi
347 offers a solid, reliable pressure transducer with excellent noise immunity, repeatability and stability.

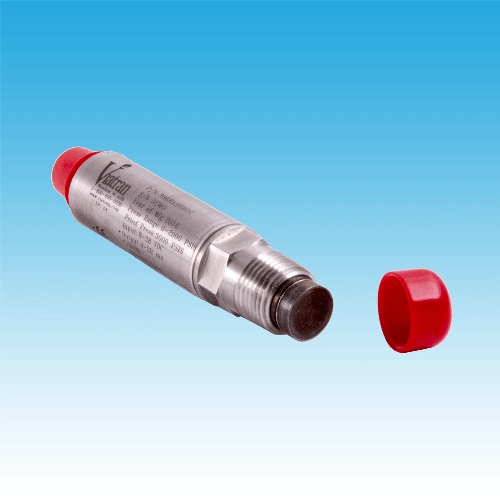

Model 386 Pressure Transmitter
4-20mA output, 150 – 10K PSI
The Model 386 Flush Tip – Zero Cavity design offers an Isolated sensor assembly that virtually eliminates installation torque effect and is able to withstand pressure spikes up to 1.5x proof pressure and 5x burst pressure (or 30,000 PSI, whichever is less).
