4-20 mA output, 2″ 2202 Fitting
Viatran’s new Model 522 Hammer Union Pressure Transmitter offers superior construction and the rugged performance that we have built our reputation on. This new generation of Hammer Union Pressure Transmitters incorporates more user friendly features and optional add-on features than ever before.
Features
2202 Hammer Union Pressure Fitting
Many Options available
RoHS Compliant
Designed for use in oil well high pressure pumping applications, these accurate yet rugged instruments are ideally suited to the harsh oil field environment.
Potential applications include Acidizing, Choke Manifolds, Extraction, Fracturing and Cementing,Mud Pumps, New Well development, Nitrogen Injection, Service and Cement Trucks, Standpipe, Stimulation and Well head measurement.
Contact us to confirm your choice or to customize the Model 522.
External Calibration Software Available
Viatran is now able to offer the DevCom 2000-LT Desktop Software for calibration of our 522 Hammer Union Pressure Transmitters.
Full Scale Pressure Ranges: 0-5K, 0-6K, 0-10K, 0-15K PSIS
Combined Accuracy (BFSL): (Non-Linearity, Hysteresis & Repeatability) ≤ ± 0.25% FSO
Full Scale Output (FSO): 16.00 mA ±1% FSO @70°F
Zero Balance: 4 mA ±1% FSO @70°F
Compensated Temperature Range: -40°F to 140°F (4°C to 60°C)
Operating Temperature Range: -40°F to 185°F (-40°C to 85°C)
Storage Temperature Range: -67°F to 302°F (-55°C to 150°C)
Long Term Stability (%FSO): ≤ ± .25% FSO per 6 months
Thermal Effect on Zero: ≤± 1% FSO per 100°F Typical
Thermal Effect on Span: ≤± 1% FSO per 100°F Typical
Output Signal: 4-20 mA @70°F
Supply Voltage: 9-28 Vdc
Power Supply Regulation: <± .01% FSO per volt
Load Impedance: 900 ohms @ 28 VDC decreasing linearity to 0 ohms @ 9 VDC
Circuit Protection: Reverse polarity protected
RFI / EMI:
- <1% FSO output change with 3V Rms from 150 kHz to 80 MGz
- (80% AM modulated at 1 kHz) applied to power supply and signal lines
- [IEC 61000-4-6 radio frequency common mode immunity],
- 1% output change when exposed to a radiated electromagnetic
- field of 10 V/m from 80 MHz to 1 GHz AM modulated at 1 kHz and 3 V/m
- 1.4 GHz to 2.7 GHz. [IEC 61000-4-3 Radiated electromagnetic field immunity]
Voltage Spike Protection: Withstand 1000 volt spike per EN 61000-4-5
Insulation Resistance: < 5 nS
Response Time: < 1 millisecond to reach 90% of FSO
Range Calibration Signal: 100% FSO ±10% by exciting pins E&F
Calibration Power Supply Voltage: 8.5 – 28 VDC
Calibration Signal Accuracy: Readings on calibration certificate are within ±0.2% FSO of actual Cal signal output
Bridge Resistance: 10K ohms, nominal

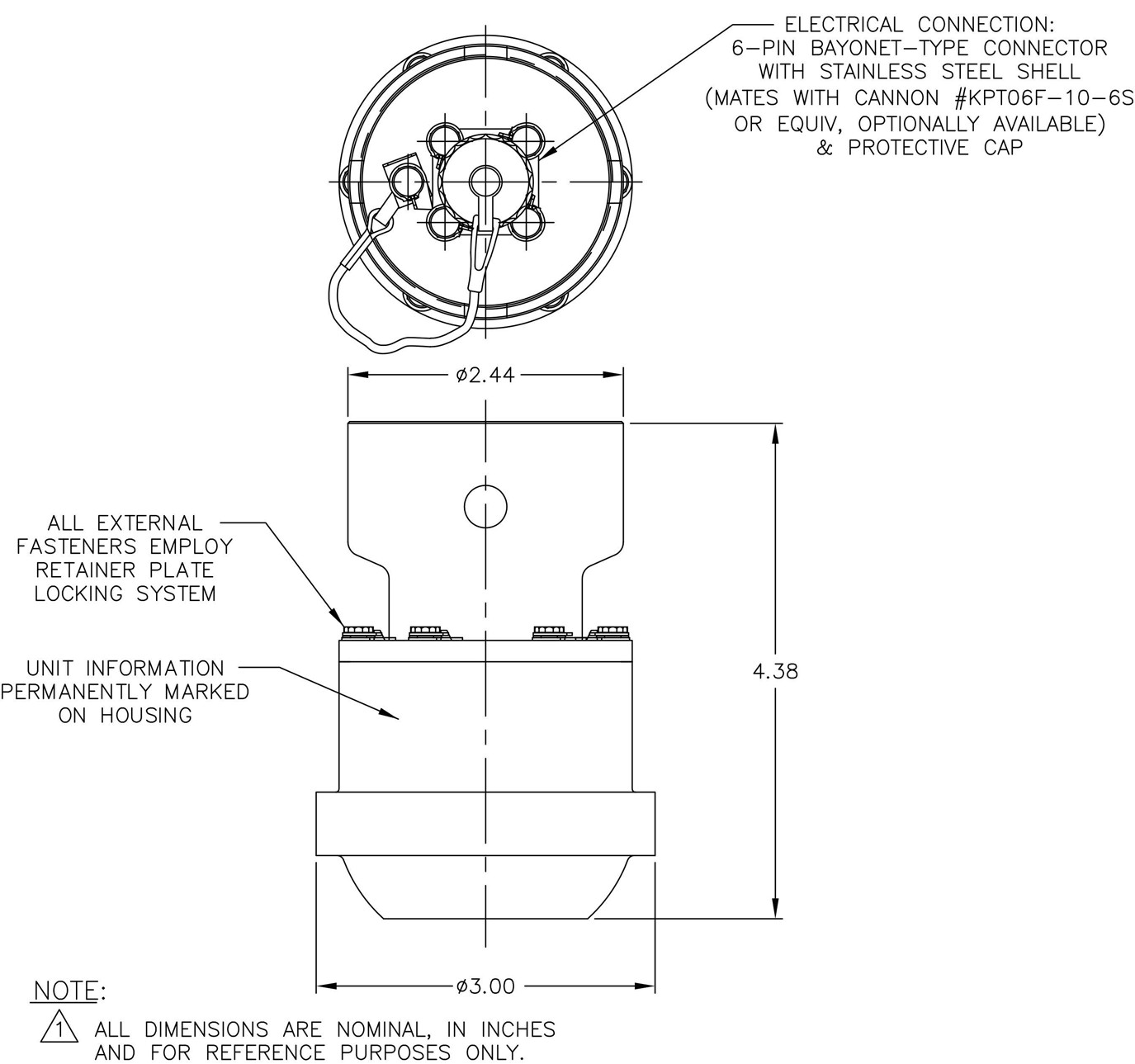

Standard Electrical Connection: Mates with 6 pin, Hermetic, Box Mount, Shell Size 10, MIL-C-26482 bendix type connector
PIN OUTS:
PIN A + Power / Signal
PIN B – Power / Signal
PIN C No Connection
PIN D No Connection
PIN E + Calibration
PIN F – Calibration
Standard Pressure Port: Male hammer union 2 inch #2202
Pressure Cavity Volume: Standard: 0.45 cubic inches
Zero Effect from Installation: 0.3% FSO w/200 ft-lbs torque on union #2202
Shock Sensitivity: 1000 g, 0.5 ms half sine wave pulse shall not cause change in calibration
Proof Pressure: 1.67X range or 22,500 PSI max
Burst Pressure: 3 Times full scale pressure range, limited by union #2202: 22,500 PSI
Wetted Materials: NACE compliant Inconel 718 (MR0175/ISO 15156-3:2009(E))
Enclosure Material: 304 Stainless Steel
Identification: Laser marked on body of unit
Enclosure Rating: IP68*, NEMA 6P*
Weight: 4.0 lbs. nominal
* Pending approvals
DC: Compensated temperature -40°F to 140°F
DG: Improved temperature compensation
DH: Special Range
DN: Improved accuracy
EA: Special Calibration Run
EH: Compensated temperature range 40°F to 180°F
LW: Narrow adapter for banding
NA: Carrying handle attached
NH: Customer specific identification
NP: Protective ring cage
NQ: Protective criss-cross cage
Z(): Special connectors
KH: IECEx Intrinsically Safe
NK: ATEX Intrinsically Safe
NX: FM Canadian Intrinsically Safe
TF: FM USA Intrinsically Safe
TG: FM USA and Canadian Intrinsically Safe
TW: Russia Intrinsic Safety
