4-20 mA output, 2″ 1502 fitting, Hazardous Location Approvals
511 is Viatran’s state of the art hammer union pressure transmitter with industry exclusive features that were developed in direct response to requests from the field. Included in these features is a voltage powered shunt cal, ability to calibrate and track pressure spikes using HART® Communicators or DevCom2000-Lite software and packaged in a patented* housing which can withstand extreme vibration and abusive impact and still perform to specification.
Features
1502 Hammer Union Pressure Fitting
RoHS Compliant
ShuntCal
IP-68 Rated
High-Pressure Applications
RapidShip – 2 Day Turnaround
- Patented* Design to withstand extreme vibration and abusive impact
- Impervious to Fluid Ingress with patented angled connector base, drain holes, and sealing method
- Easy Access Connector Housing – 77% greater area
- Expanded compensated temperature range
- Improved sealing method for connector pins
- External adjust, identification, and peak pressure capture
- RoHS compliant
- Shunt calibration
- * US Patents D711266 , US 9,607,596 B2
- * EU Patent No. 002334250-001
- *CN Patent ZL 201330 527540.1
Output Signal: 4-20 mA @70°F
Supply Voltage: 9-28 Vdc
Power Supply Regulation: <± .01% FSO per volt
Load Impedance: 900 ohms @ 28 VDC decreasing linearity to 0 ohms @ 9 VDC
Circuit Protection: Reverse polarity protected
RFI / EMI:
- <1% FSO output change with 3V Rms from 150 kHz to 80 MGz
- (80% AM modulated at 1 kHz) applied to power supply and signal lines
- [IEC 61000-4-6 radio frequency common mode immunity],
- 1% output change when exposed to a radiated electromagnetic
- field of 10 V/m from 80 MHz to 1 GHz AM modulated at 1 kHz and 3 V/m
- 1.4 GHz to 2.7 GHz. [IEC 61000-4-3 Radiated electromagnetic field immunity]
Voltage Spike Protection: Withstand 1000 volt spike per EN 61000-4-5
Insulation Resistance: < 5 nS
Response Time: < 1 millisecond to reach 90% of FSO
Range Calibration Signal: 100% FSO ±10% by exciting pins E&F
Calibration Power Supply Voltage: 8.5 -28 VDC
Calibration Signal Accuracy: Readings on calibration certificate are within ±0.2% FSO of actual Cal signal output
Bridge Resistance: 10K ohms, nominal

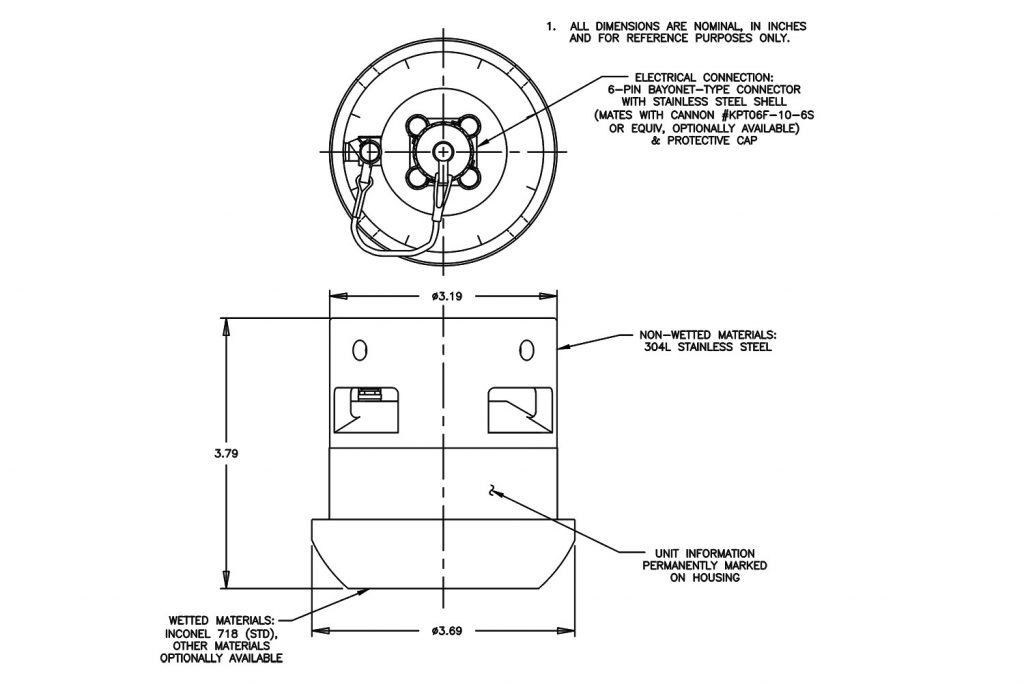

Standard Electrical Connection: Mates with 6 pin, Hermetic, Box Mount, Shell Size 10, MIL-C-26482 bendix type connector
PIN OUTS:
- PIN A + Power / Signal
- PIN B – Power / Signal
- PIN C No Connection
- PIN D No Connection
- PIN E + Calibration
- PIN F – Calibration
Standard Pressure Port: Male hammer union 2 inch #1502
Pressure Cavity Volume: Standard: 0.45 cubic inches
: Option “TP” : 0.22 cubic inches
Zero Effect from Installation: 0.3% FSO w/200 ft-lbs torque on union #1502
Shock Sensitivity: 1000 g, 0.5 ms half sine wave pulse shall not cause change in calibration
Proof Pressure: 1.67X range or 22,500 PSI max
Burst Pressure: 3 Times full scale pressure range, limited by union #1502: 22.5K PSI
Wetted Materials: NACE compliant Inconel 718 (MR0175/ISO 15156-3:2009(E))
Enclosure Material: 304 Stainless Steel
Identification: Laser marked on body of unit
Enclosure Rating: IP68*, NEMA 6P*
Weight: 5.6 lbs. nominal
* Pending approvals
DC: Extended Compensated Temperature Range (Cold) -40°F to 140°F (-40°C to 60°C)
DG: Improved temperature compensation
DH: Special Range
DN: Improved accuracy
EA: Special Calibration Run
EH: Extended Compensated Temperature Range (Hot) +40°F to 180°F (4°C to 82°C)
LW: Narrow adapter for banding
NA: Carrying handle attached
NH: Customer specific identification
NP: Protective ring cage
NQ: Protective criss-cross cage
Z(): Special connectors
TW: Russia Intrinsic Safety and Non-Sparking
