0-5 Vdc, 0- 3 to 15K psi, High Overpressure Protection
All welded stainless steel construction combined with sensors that are hermetically sealed with no adjustment controls provide an airtight and watertight transducer preventing contamination from the application environment.
Features
High Accuracy
Many Options Available
All Stainless Steel construction
Shunt Calibration circuit option
The “48” Series is made to withstand overloads and severe pressure spikes that can offset, weaken or destroy other sensors.
The minimum 3X overpressure rating on the X48 means better than 0.15% accuracy while still offering a response time of less than a millisecond.
It’s designed to provide years of reliable, repeatable service.
Typical Applications:
• Engine test stands
• Production test stands
• Hydraulic
• Compressors & Pumps
• Rolling mills
• Die Casting
Contact us today to customize this unit to meet your specific needs.
Full Scale Pressure Ranges:
- 0-15 thru 0-200 PSIA (0-1.0 thru 0-13.7 bar)
- 0-3 thru 0-15K PSIG, PSIS (0-0.2 thru 0-1034 bar)
- 0-15 PSIV* (0-1.03 BarV)
Accuracy (combined linearity, hysteresis & repeatability):
- 0-200 PSI (0-13.7 bar) ~ ≤±0.25% FSO
- 300 – 15K PSI (20-1034 bar) ~ ≤ 0.15%
Full Scale Output (FSO): 5 Vdc ±1%
Resolution: Infinite
Long Term Stability: ≤0.5% FSO per 6 months
Compensated Temperature Range: 70°F to 170°F (21°C to 77°C)
Ambient Operating Temperature Range: -40°F to 185°F (-40°C to 85°C)
Storage Temperature Limits: -40°F to 250°F (-40°C to 121°C)
Temperature Effect on Zero: ≤± 1 % FSO per 100°F
Temperature Effect on Span: ≤± 1 % FSO per 100°F
* For PSIV and Compound Range units:
- Temperature Effect on Zero: ≤±3.0% per 100°F
- Compensated Temperature Range: 32°F to 170°F (0°C to 77°C)
Supply Voltage: 9 to 30 Vdc
Power Supply Regulation Effect: ≤±0.05% FSO per volt over the supply voltage range
Output Signal: 0 – 5 Vdc
Circuit Protection: Reverse polarity protected
Insulation Resistance: <5 nSec
Response Time: ≤1 mSec for 10% to 90% FSO

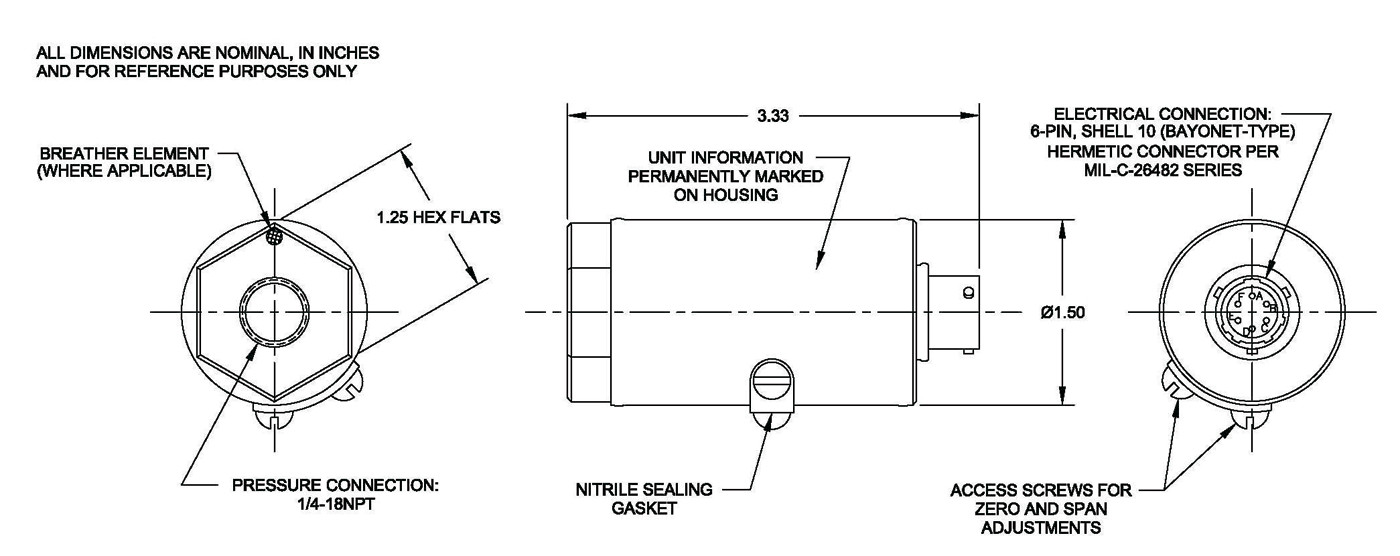

Electrical Connection: 6 pin hermetic, bayonet-style, 303 SST weldmount connector
Pin Outs:
Pin A + Power
Pin B – Power
Pin C + Signal
Pin D – Signal
Pin E No connection
Pin F No connection
Wetted Parts:
- 0-3 thru 200 PSI (0-0.2 thru 13 bar) ~ 316 Stainless Steel
- >200 PSI (>13 bar) ~ 15-5PH stainless steel
Housing: 316 / 304L Stainless Steel
Weight: 10 oz (283 g)
Identification: Laser etched onto body
Pressure Connection: 1/4″ – 18 NPT female
Proof Pressure: 3 times FSPR or 20K PSI (1378 bar), whichever is less
Burst Pressure: 5 times FSPR or 45K PSI (3102 bar), whichever is less
Pressure Cavity Volume: 3 mL without fittings
Mounting: May be supported by process piping
ELECTRICAL CONNECTION:
BH: C21-10-6PN-20-0P1
BI: CF3102E-14S-2P
BZ: Micro change
ZU: Direct Cable (175°F max temperature) (79°C)
ZY: 1/2″ (M) NPT conduit connection
ALTERNATE PRESSURE PORTS:
WG: G-1/4″ (F)
YC: MS33656-04 (M)
YD: MS33656-06 (M)
YG: MS16142-04 (F)
YK: 1/4″ NPT (M)
YU: MS16142-06 (F)
PERFORMANCE OPTIONS:
DE: Internal calibration
DG: Improved temp performance to 0.005% FSO per 1°F
DH: Special ranging
DM: Modified full scale output
DQ: Cleaning for oxygen service
EA: Special calibration run
NH: Customer specified identification
NJ: CE approved
PW: 1/8 DIN digital indicator
Note:
Vented gage units should only be installed in environments that allow the breather to remain dry and free from contamination.
Application of some available options may affect standard performance.
