Submersible Level Transmitters
Particularly for water and wastewater applications, you need a robust pressure transmitter that can be submerged and still provide you with the necessary reading to keep your plant operational. Viatran has submersible level transmitters that can work in the most hostile media.

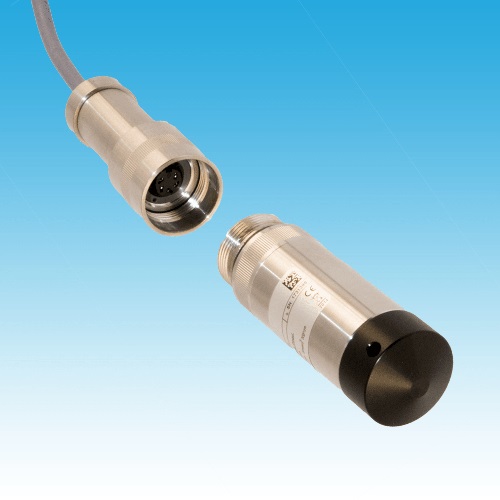

Model 590 Detachable Level Transmitter
0-40″ thru 835′ WC, PUR Cable Standard, Stainless Steel Sensor and Housing
The Model 590 Detachable Level Transmitter allows for a quick sensor swap without the removal of the installed polyurethane standard cable. PVC and FEP cables are also available. 590/591 have the deepest level rating at 835′. Sensor head and/or cable can be ordered separately. A complete range of accessories for use in level applications are available, many from stock.

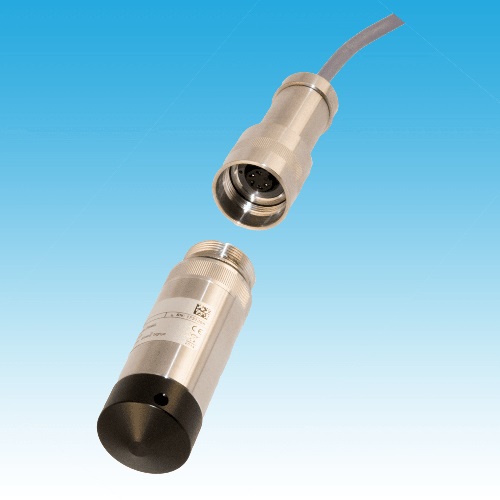

Model 591 Detachable Level Transmitter
0-40″ thru 835′ WC, High Accuracy, PUR Cable Standard, Stainless Steel Sensor and Housing
The Model 591 Detachable Level Transmitter is similar to the 590, but provides a higher accuracy solution. Detachable design allows for a quick sensor swap without the removal of the installed polyurethane standard cable. PVC and FEP cables are also available. 590/591 have the deepest level rating at 835′. Sensor head and/or cable can be ordered separately. A complete range of accessories for use in level applications are available, many from stock.

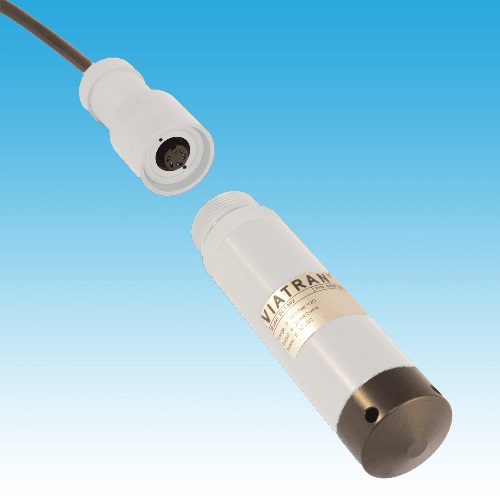

Model 592 Detachable Level Transmitter
0-40″ thru 335′ WC, PUR Cable Standard, PP-HT Housing, Stainless Steel Sensor
The Model 592 allows for a quick sensor swap without the removal of the installed polyurethane standard cable. Common configurations in 592 series are stock items. PVC, TPE and FEP cables are also available. Sensor head and/or cable can be ordered separately. A complete range of accessories for use in level applications are available, many from stock.

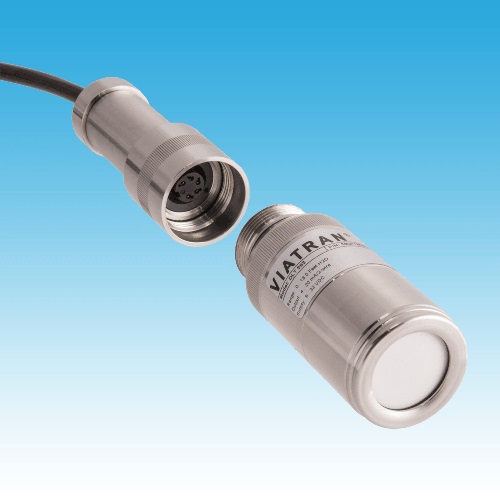

Model 593 Detachable Level Transmitter
0-16″ thru 335′ WC, PUR Cable Standard, Stainless Steel Housing, Ceramic Sensor, Lowest Level Rating
The Model 593 allows for a quick sensor swap without the removal of the installed polyurethane standard cable. PVC, TPE and FEP cables are also available. Sensor head and/or cable can be ordered separately. A complete range of accessories for use in level applications are available, many from stock.

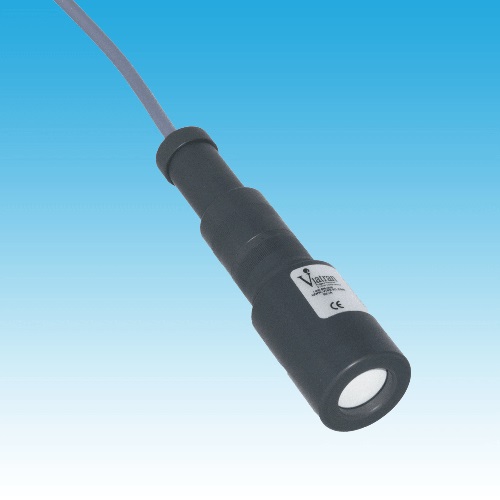

Model 595 Detachable Level Transmitter
0-16″ thru 335′ WC, PUR Cable Standard, PVC Housing, Ceramic Sensor, Lowest Level Rating
The Model 595 allows for a quick sensor swap without the removal of the installed polyurethane standard cable. PVC or FEP cables are also available. Sensor head and/or cable can be ordered separately. A complete range of accessories for use in level applications are available, many from stock.

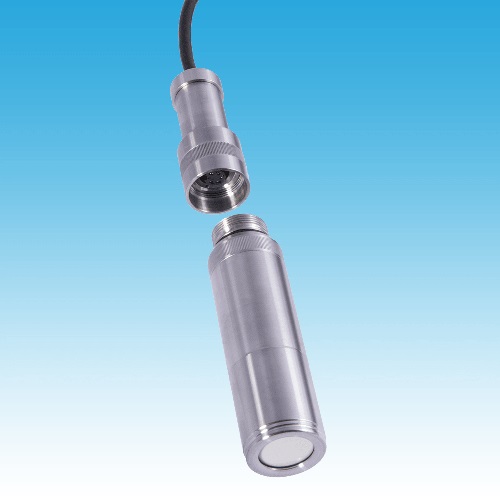

Model 596 Detachable Level Transmitter
0-32″ thru 0-335′ WC, PUR Cable Standard, Stainless Steel Housing, Ceramic Sensor, RapidShip
The Viatran Model 596 DLT is a submersible level transmitter specifically designed to meet the challenging demands of liquid measurement. The ability to detach the sensor can be an enormous time saver when or if it’s ever needed.
Ranges can be set from 0-32 Inches W.C. to 0-335 Feet W.C. or equivalent in Meters or PSI by Viatran at the time of manufacturing This capability allows Viatran to rapidly ship the transmitter within one or two days. No need for you to carry excess inventory.
0-16″ thru 335′ WC, PUR Cable Standard, PP-HT or PVDF Housing, Ceramic Sensor, Chemical Resistant

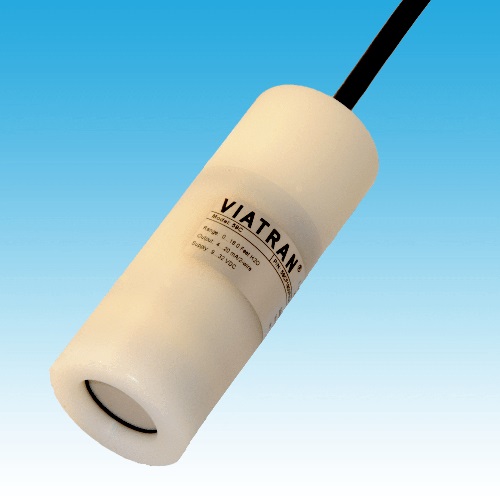

The Model 59C Submersible Level Transmitter provides Depth and Level measurements while submerged in viscous or aggressive media. Well suited for chemical tank volume or level monitoring. The semi-flush ceramic sensing face resists clogging and is easily cleaned.
0-16″wc thru 835’wc, PUR Cable Standard, Stainless Steel Sensor and Housing

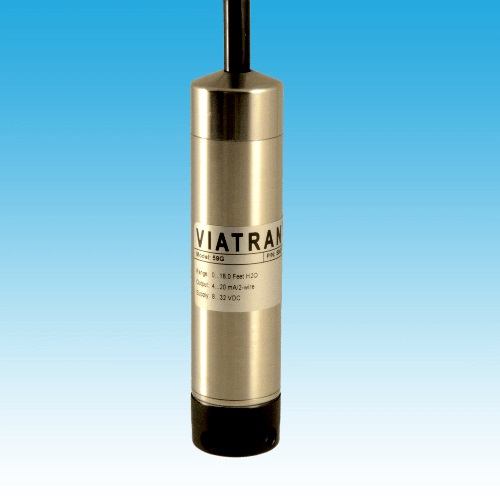

The Model 59G General Purpose Level Transmitter is designed for level measurement in water and clean or waste fluids. Higher accuracy option is available to .10%. PVC and FEP cables are also available. 59G have the deepest level rating at 835′. A complete range of accessories for use in level applications are available, many from stock.
0-13′ thru 335′ WC, PUR Cable Standard, PP-HT Housing, Ceramic Sensor, Lowest Cost

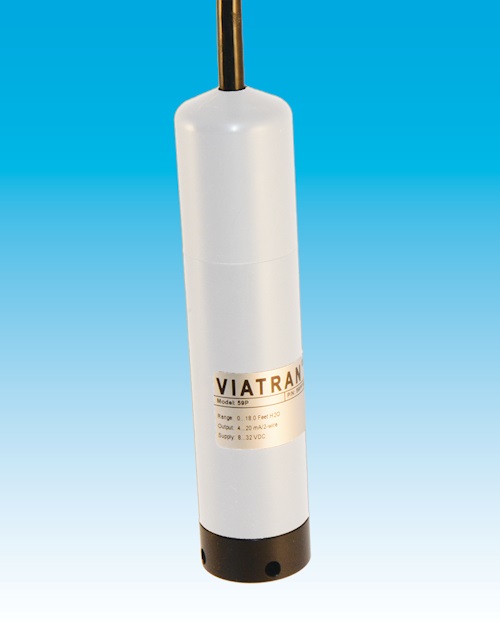

The Model 59P Submersible Level Transmitter provides Depth and Level measurements while submerged in harsh or aggressive media. Well suited for chemical tank volume or level monitoring.
0-40″wc thru 835’wc, 0.75″ diameter, PUR Cable Standard, Stainless Steel Sensor and Housing

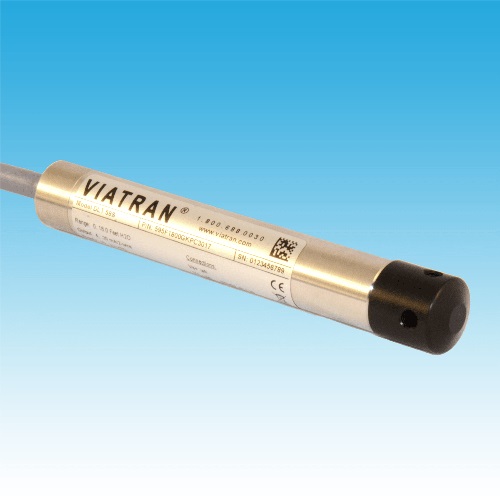

The Model 59S “Slimline” Level Transmitter is designed for level measurement where space is limited. 0.75″ diameter and 4.4″ length makes this product ideal for tight spaces. Higher accuracy option is available to .10%. PVC and FEP cables are also available. A complete range of accessories for use in level applications are available, many from stock.
0-20′ thru 670′ WC, PUR Cable Standard, PP-HT Housing, Ceramic Sensor, Slim Design

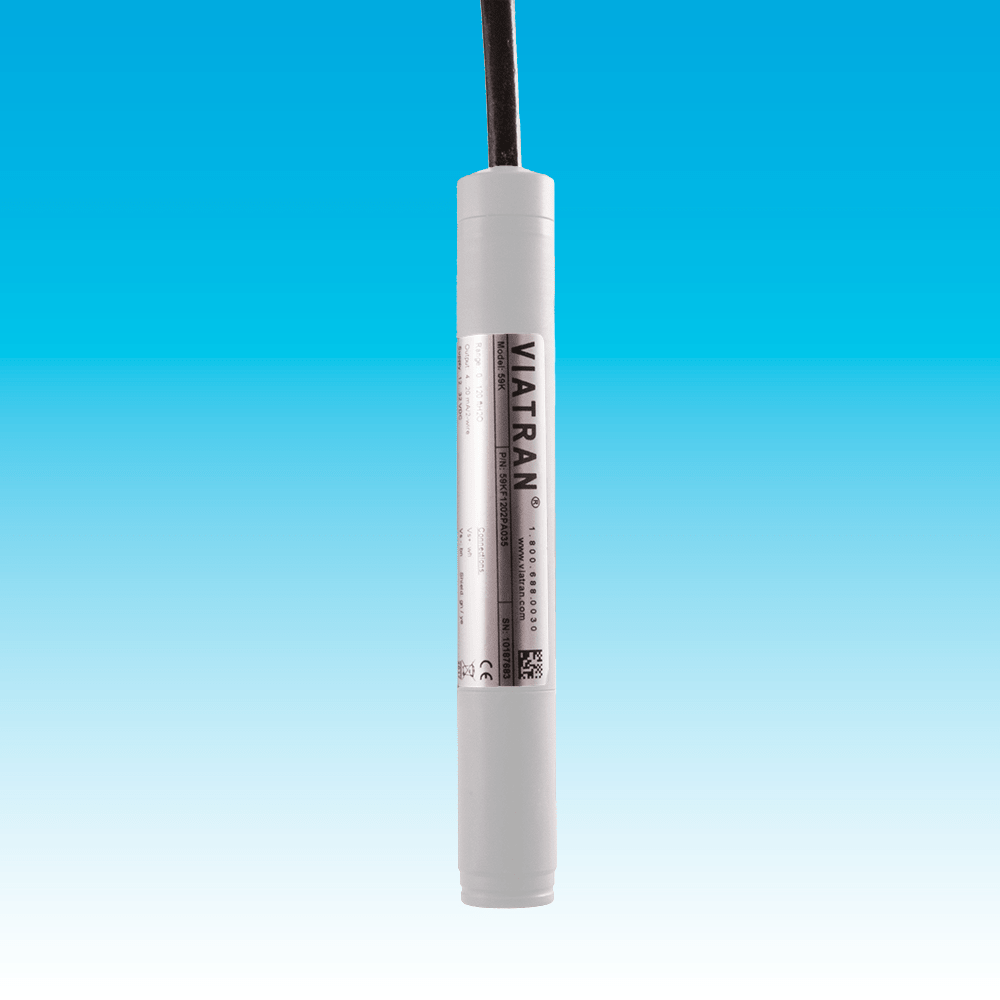

The Model 59K Submersible Level Transmitter provides Depth and Level measurements while submerged in harsh or aggressive media. Well suited for chemical tank volume or level monitoring.
Model 59T Level and Temperature Transmitter
Integral Temperature Sensor, 0-40″wc thru 835’wc, PUR Cable Standard, Stainless Steel Sensor and Housing
The Model 59T is a dual output Temperature and Level Transmitter able to measure temperatures up to 158°F. A higher accuracy option is available to .25%. PVC and FEP cables are also available. A complete range of accessories for use in level applications are available, many from stock
IS Approved, High Accuracy
All-welded Stainless Steel transmitter designed for accurate level measurement in Water, Corrosive media and hazardous locations up to 1,200 foot depth.

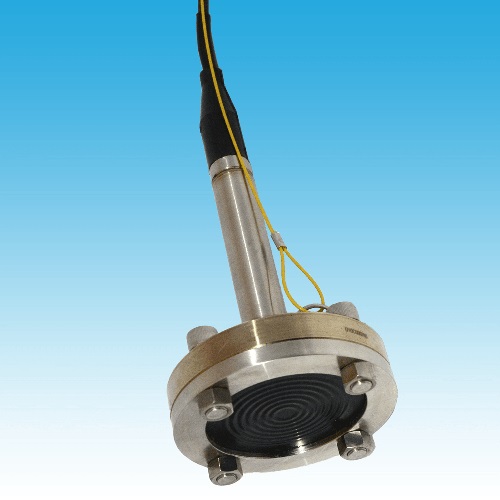

Model WW517 Pressure Transducer
Waste water, Non-Clogging Design, Hazardous Approvals option
Waste water level sensor with design that prevents clogging. Hazardous location approval option, 3″ Teflon coated diaphragm open face design which helps to prevents clogging. 316 stainless steel body. Integrated cable support loop to support the body. Optional baffle plate to provide increase stability and protection of the sensor. Kevlar reinforced cable prevents cable damage as a result of repeated removal.
