Model 38H Barometric Pressure Transmitter

4-20 mA, High Accuracy, 25″ thru 32″ HgA

Viatran’s Model 38H pressure sensor is among our most accurate pressure transmitters for industrial test and research applications. The 38H measures barometric pressure from 25″ to 32″ HgA with Improved Accuracy of ≤±0.06% FSO available.

Model 28K Barometric Pressure Transmitter

0-5 VDC, High Accuracy, 85 to 108 kPa Absolute

Viatran’s Model 28K pressure sensor is among our most accurate pressure transmitters for industrial test and research applications. The 28K measures barometric pressure from 85 to 108 kPa with Improved Accuracy of ≤±0.06% FSO available.

Model 38K Barometric Pressure Transmitter

4-20 mA, High Accuracy, 85 to 108 kPa Absolute

Viatran’s Model 38K pressure sensor is among our most accurate pressure transmitters for industrial test and research applications. The 38K measures barometric pressure from 85 to 108 kPaA with Improved Accuracy of ≤±0.06% FSO available.

Model 28M Barometric Pressure Transmitter

0-5 VDC, High Accuracy, 850 to 1080 mBar Absolute

Viatran’s Model 28M pressure sensor is among our most accurate pressure transmitters for industrial test and research applications. The 28M measures barometric pressure from 85 to 108 kPa with Improved Accuracy of ≤±0.06% FSO available.

Model 38M Barometric Pressure Transmitter

4-20 mA, High Accuracy, 850 to 1080 mBar Absolute

Viatran’s Model 38M pressure sensor is among our most accurate pressure transmitters for industrial test and research applications. The 38M measures barometric pressure from 850 to 1080 mBarA with Improved Accuracy (Non Linearity) of ≤±0.06% FSO available.

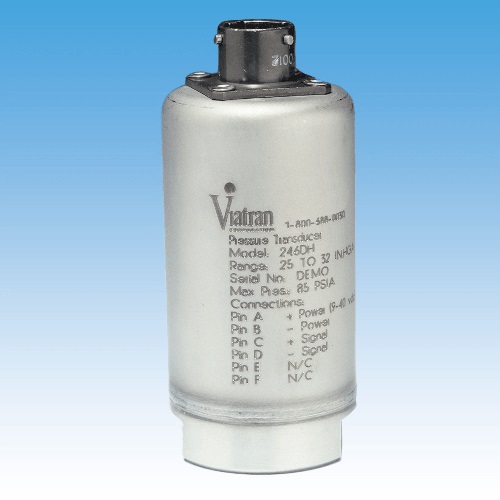

Model 246 Pressure Sensor

0-5 Vdc output, Barometric Pressure

Viatran’s 246 pressure sensor is an electronic pressure transmitter designed to accurately measure barometric pressure to within 0.01 in HgA. The 346 measures pressures over standard ranges of 25 in HgA to 32 in HgA.

Model 346 Pressure Sensor

4-20 mA output, Barometric Pressure

Viatran’s 346 pressure sensor is an electronic pressure transmitter designed to accurately measure barometric pressure to within 0.01 in HgA. The 346 measures pressures over standard ranges of 25 in HgA to 32 in HgA.

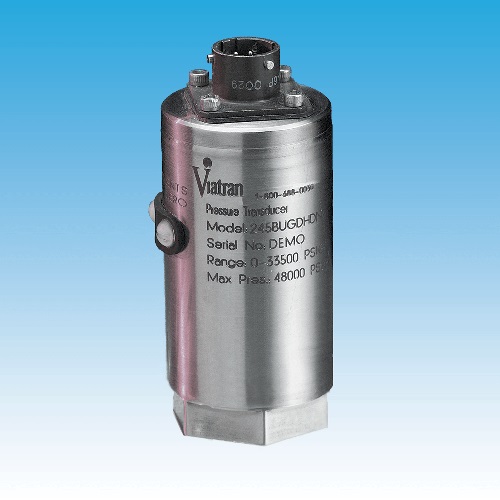

Model 245 Pressure Transmitter DigiComp

0-5 VDC, High Accuracy, 3 thru 5000 psi

Viatran’s Model 245 DigiComp pressure sensor is among our most accurate pressure transmitters for industrial test and research applications. The 245 measures gage and absolute pressure from 3 PSI to 5,000 PSI (0.2 to 345 bar) with standard accuracy of ≤±0.06% FSO.

Model 245 Pressure Transmitter High Range

0-7500 thru 100K psi, 0-5Vdc output, 0.15% accuracy

Viatran’s Model 245 High Range pressure sensor is among our most accurate pressure transmitters for industrial test and research applications at higher pressures. Improved accuracies are available, as well as improved temperature performance.

Model 345 Pressure Transmitter DigiComp

4-20 mA output, High Accuracy, 3 to 5000 psi

Viatran’s Model 345 DigiComp pressure sensor is among our most accurate pressure transmitters for industrial test and research applications. The 345 measures gage and absolute pressure from 3 PSI to 5,000 PSI (0.2 to 345 bar) with standard accuracy of ≤±0.06% FSO.

Model 345 Pressure Transmitter High Range

0-7500 thru 100K psi, 4-20 mA output, 0.15% accuracy

Viatran’s Model 345 High Range pressure sensor is among our most accurate pressure transmitters for industrial test and research applications at higher pressures. Improved accuracies are available, as well as improved temperature performance.

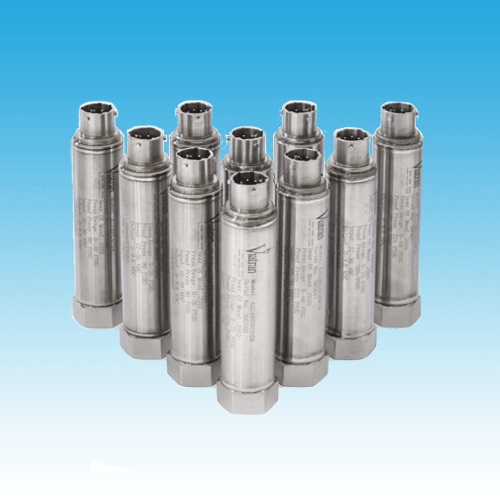

Model 422 Pressure Transmitter

0-5 Vdc, 0-3 to 5000 psi
Designed for Overhead Junction Boxes

Model 422 is small in size, but packs a high-performance punch. The electronics and silicon sensor design have a combined accuracy of better than ±0.08%.

Model 423 Pressure Transmitter

4-20 mA, 0-3 to 5000 psi
Designed for Overhead Junction Boxes

Model 423 is small in size, but packs a high-performance punch. The electronics and silicon sensor design have a combined accuracy of better than ±0.08%.

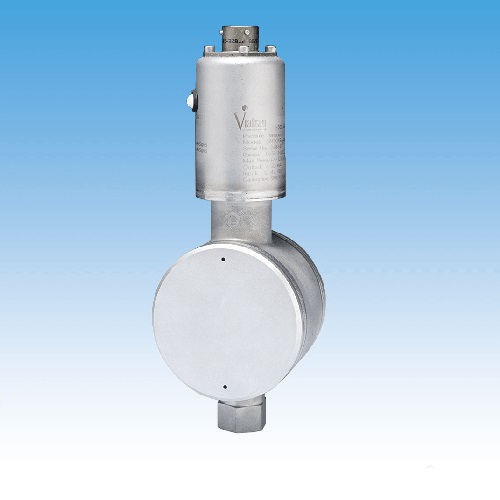

Model 344 Pressure Transmitter

4-20 mA, 5″wc to 100 psi

Viatran’s 344 sensor is a low range pressure transmitter designed for the test market. The 344 features highly accurate pressure measurement in ranges from 5 inches water column to 100 PSI. The unique variable capacitance technology allows for extreme overpressure protection up to 500 PSI.

Model 244 Pressure Transducer

0 – 5Vdc, 5″wc to 100 psi

Viatran’s 244 sensor is a low range pressure transducer designed for the test market. The 244 features highly accurate pressure measurement in ranges from 5 ” WC to 100 PSI. The unique variable capacitance technology allows for extreme overpressure protection up to 500 PSI.

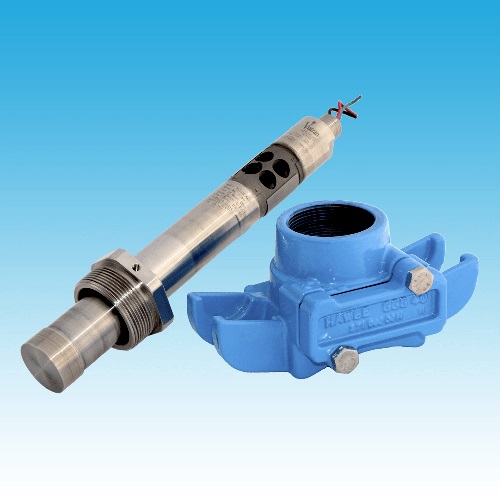

Model 555 Pressure Transmitter

Integral Shutoff for inline installation, Slurry and Sludge measurement

Designed for harsh abrasive slurry, the 555 has a unique feature which allows for wet installation in less than an hour through the use of a pipe saddle with integral shutoff. External adjustments and corrosive resistant wetted materials make this an excellent choice for pulp and paper, waste water processing, slurry and sludge measurements.

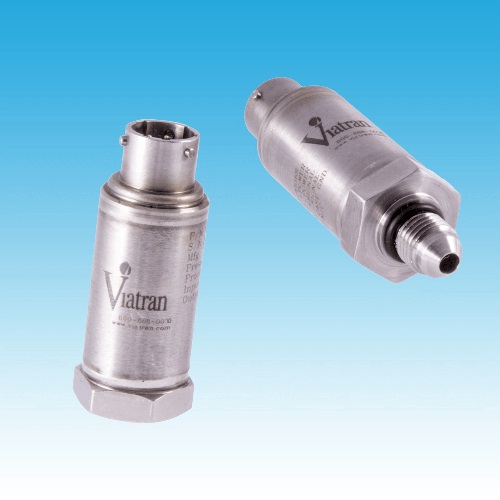

Model 122 Pressure Transducer

mv/V output, 0-5 Vdc, 0-3 to 5000 psi, 7/8″ diameter

Viatran Model 122 pressure transducer is designed for applications where space is limited. With a maximum diameter of 7/8″, the 122 pressure transducer is designed to fit in the smallest of places with easy installation. 1/8″ NPT(M) and (F)options are shown.

Model 424 Pressure Transducer

0-5 Vdc, 0-3 to 5000 psi
For use in applications requiring small footprint

Developed for engine test stands with space constraints, the Model 424 is small in size, but packs a high-performance punch. The electronics and silicon sensor design have a combined accuracy of better than ±0.08%.
Available standard output is 0-5 Vdc for PSIA or 0.25 – 5.25Vdc for PSIG measurements.

Model 570 Pressure Transmitter

4-20 mA, 0-100 psi thru 100K psi, Hazardous Approvals

570 provides a rugged, sealed solution for hazardous rated and harsh environments.

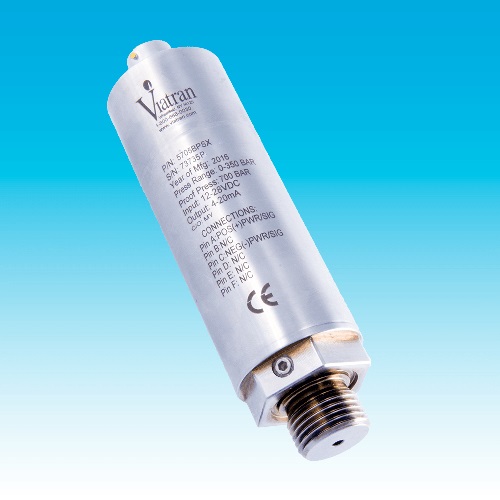

Model RM570 Pressure Transmitter

4-20 mA, 0-100 Bar thru 0-350 Bar

RM 570 transmitters provide a rugged, sealed solution for the harsh industrial environments found in Rolling Mills and the metals industry.

Model 770 Pressure Transmitter

0-5 Vdc output, Hazardous Location Approvals, 0-100 thru 100K psi

770 uses a solid machined diaphragm sensor, which provides excellent durability and repeatability. 770 has both IS and Explosion Proof approvals, and can measure pressures up to 100K psi. A wide variety of wetted surface materials, process connections and electrical connections are available, and special wiring configurations are easily accommodated.

Model 870 Pressure Transmitter

mv/V output, 0-100 thru 100K psi, Hazardous Location Approvals

870 employs a solid machined diaphragm sensor which provides a rugged and reliable solution with excellent repeatability and resistance to pressure spikes. 870 hazardous approval options include Intrinsically safe and Explosion proof for US, Canada and Atex.

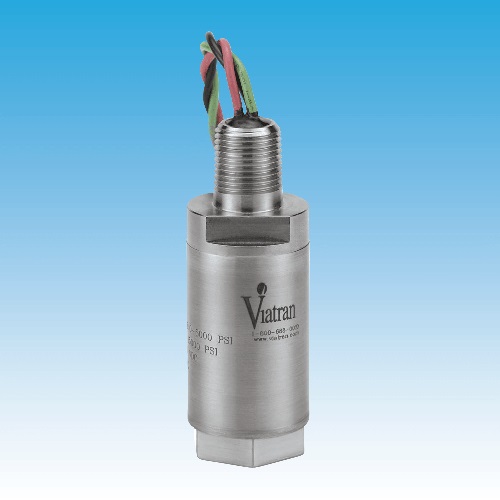

Model 548 Pressure Transmitter

mA output, 0-3 thru 0-5K psi, Hazardous Approvals

548 has the approvals necessary for use in hazardous areas. Viatran offers a variety of standard options and our ability to modify our products provides flexibility to meet your specific application needs.

Model 748 Pressure Transmitter

0-5 Vdc, Hazardous Location Approvals, 0-1.5 thru 5K PSI

748 has hazardous location approvals, optional zero and span adjustment and can measure pressures as low as 1.5 psi. Compound ranging, negative outputs, a variety of pressure and electrical connections are examples of options that are available to customize the 748 to your exact requirements.

Model 848 Pressure Transmitter

mv/V output, Hazardous Location Approvals, 0-1.5 thru 5K psi

848 is a mv/V output, oil fill sensor with hazardous location approvals. In ranges from 1.5 to 5K, the 848 is available in Vacuum, Absolute and Gage formats to cover a broad spectrum of applications.

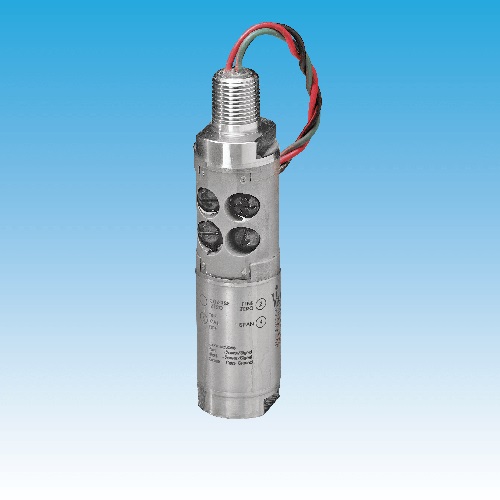

Model 571 Pressure Transmitter

Sealed External Adjustment, Hazardous Approvals, 0-100 thru 100K psi

571 is Viatran’s answer to the requirement for Hazardous Location approvals with external sealed adjustments. 571 is rangeable, offering the user flexibility if measuring different pressure levels.

Model 970 Pressure Transmitter

HART® output, 0-100 thru 100K psi, Hazardous Location Approvals

Designed for applications including offshore oil rigs, oil production platforms, natural gas pipelines and rig safety systems, 970 uses a solid machined stainless steel diaphragm.

Model 544 Pressure Transmitter

4-20 mA, 5″ WC to 100 psi, Hazardous approvals

Viatran’s Model 544 is a low pressure gage transmitter designed for precise measurement in hazardous locations. External adjustments allow for field calibration and ranging to provide measurement flexibility.
