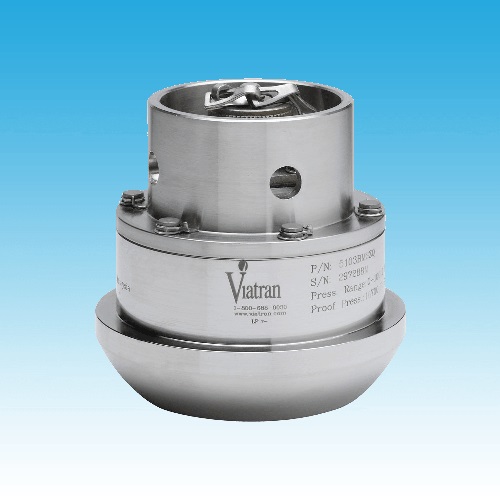

Model 510 Hammer Union Pressure Transmitters

Oil Well Drilling, Cementing, Fracturing and Acidizing

Our exclusive semi flush design provides a lower cavity volume to prevent clogging. This eliminates the need for tedious cleaning, especially in cementing applications.

Model 509 Hammer Union Pressure Transmitter

Oil Well Drilling, Cementing, Fracturing and Acidizing

Our exclusive semi flush design provides a lower cavity volume to prevent clogging. This eliminates the need for tedious cleaning, especially in cementing applications.

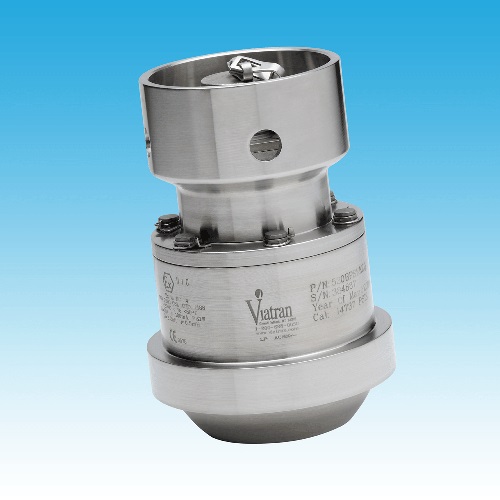

Model 520 Hammer Union Pressure Transmitters

4-20 mA output, 2″ 2002 fitting, Hazardous Location Approval Options

Viatran’s Model 520 Hammer Union Pressure Transmitter offers superior construction and the rugged performance that we have built our reputation on.

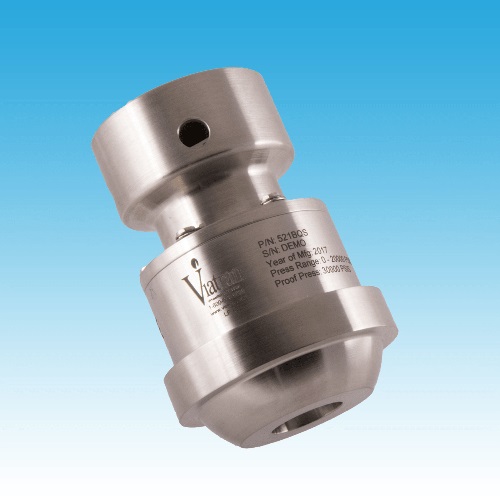

Model 521 Hammer Union Pressure Transmitters

4-20 mA output, 2″ 2002 fitting

521 is Viatran’s state of the art hammer union pressure transmitter with industry exclusive features that were developed in direct response to requests from the field. Included in these features is a voltage powered shunt cal, ability to calibrate and track pressure spikes using HART software and packaged in a patented housing which can withstand extreme vibration and abusive impact and still perform to specification.

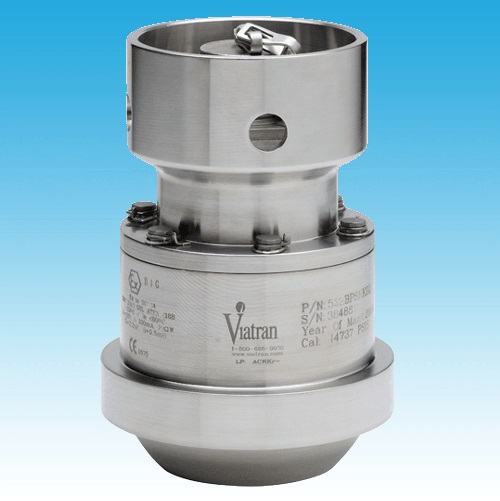

Model 522 Hammer Union Pressure Transmitter

4-20 mA output, 2″ 2202 Fitting

Viatran’s new Model 522 Hammer Union Pressure Transmitter offers superior construction and the rugged performance that we have built our reputation on. This new generation of Hammer Union Pressure Transmitters incorporates more user friendly features and optional add-on features than ever before.

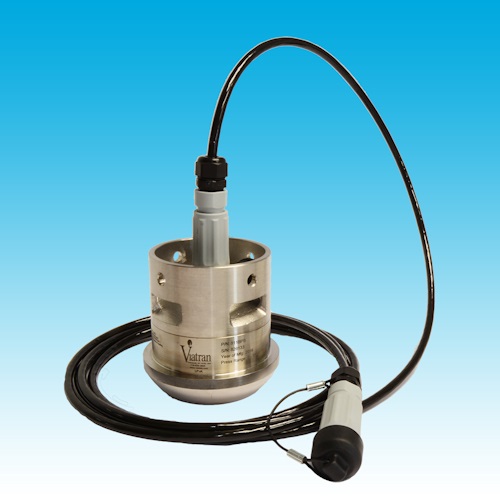

Model 811 Hammer Union Pressure Transducer

mV output, 2″ Figure 1502 fitting

811 is Viatran’s state of the art hammer union pressure transducer with a millivolt output that was developed in direct response to requests from the field. Built with a patented* housing which can withstand extreme vibration, abusive impact and will continue to perform to specification.
Ruggedized Connector Cables sold separately.

Model 709 Hammer Union Pressure Transmitter

0-5 Vdc output, 2″ 1502 Fitting, Hazardous Location Approvals

709 is a 0-5Vdc output hammer union transmitter to monitor pump pressures in oil servicing applications like drilling, cementing, and hydrofracturing. Available with hazardous location approvals and a variety of electrical connections.

Model 809 Hammer Union Pressure Transmitter

mv/V output, 2″ 1502 Fitting

809 is the version of 09 series with no signal conditioner. A variety of sensor materials and electrical connections are available.
