Flush Mount Pressure Transmitters
Viatran’s flush mount pressure transmitters offer unique fittings to meet a variety of applications. The fitting range from those that are for use with corrosive median that might accumulate and clog a standard fitting that inhibits bacterial growth and facilitates Clean in Place (CIP).

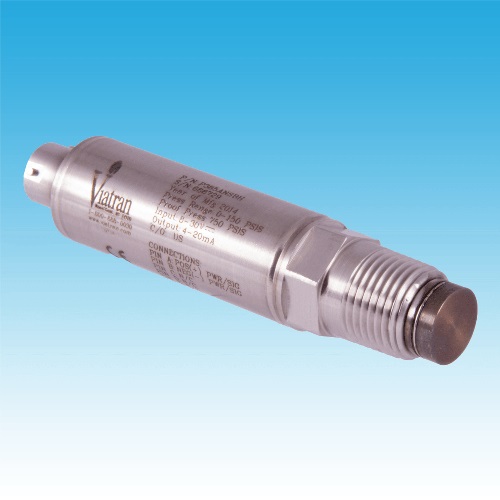

Model 385 Pressure Transmitter
5x proof, 4-20 mA output, Blender Pressure Measurement
The Model 385 Flush Tip – Zero Cavity design offers an Isolated sensor assembly that virtually eliminates installation torque effect and is able to withstand pressure spikes up to 5x proof pressure and 20x burst pressure.
Model 386 Pressure Transmitter
4-20mA output, 150 – 10K PSI
The Model 386 Flush Tip – Zero Cavity design offers an Isolated sensor assembly that virtually eliminates installation torque effect and is able to withstand pressure spikes up to 1.5x proof pressure and 5x burst pressure (or 30,000 PSI, whichever is less).

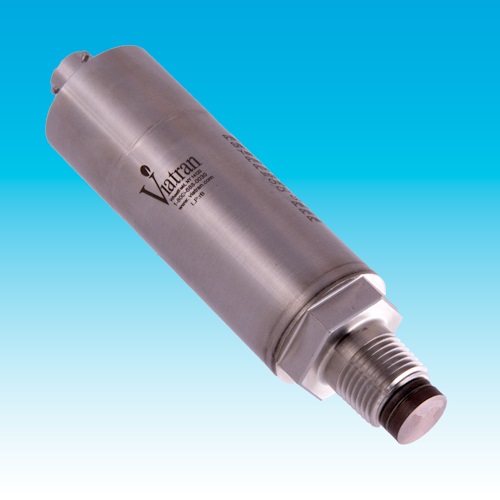

Model 570 Flush Tip Diaphragm Pressure Transmitter
5x proof, 4-20 mA output, Blender Pressure Measurement
The Model 570 Flush Tip – Zero Cavity design offers an Isolated sensor assembly that virtually eliminates installation torque effect and is able to withstand pressure spikes up to 5x proof pressure and 20x burst pressure.
Model 550 Pressure Transmitter
Flush Mount Sensor, 0-50 thru 1000 psi, Solid Machined Diaphragm
550 is designed to provide rugged performance while measuring harsh corrosive materials. The sensor is a stainless steel machined diaphragm, with no oil fill. The zero cavity flush sensor provides an easy clean surface with no clogging.
Model 551 Pressure Transmitter
Flush Mount Sensor, 0-50 thru 1000 psi, Solid Machined Diaphragm, Sealed External Adjustments
551 is designed to provide rugged performance while measuring harsh corrosive materials. The sensor is a stainless steel machined diaphragm, with no oil fill. The zero cavity flush sensor provides an easy clean surface with no clogging. Magnetically coupled external adjustments prevent fluid ingress while providing a rangeable, field adjustable solution.

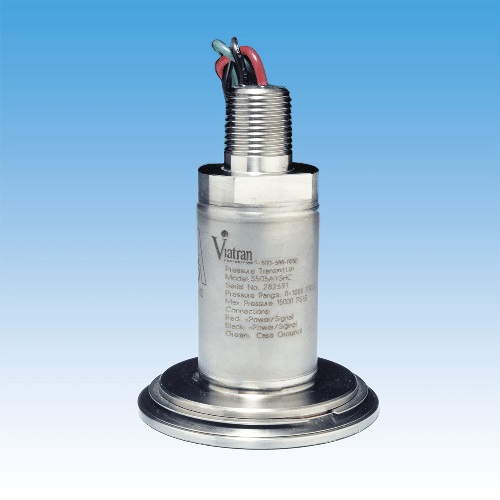

Model 350 Pressure Transmitter
3A approved, Flush Machined Diaphragm Sensor, Tri-Clamp Fitting
Viatran technology allows for accurate pressure measurement up to 1000 PSI. The transmitter also has no moving parts,
isolation diaphragm, or oil fill to contaminate your process fluid.

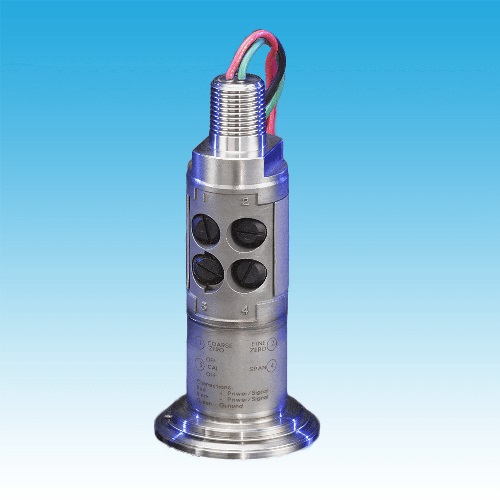

Model 351 Pressure Transmitter
3A, Flush Machined Sensing Diaphragm, External Adjustment, Tri-Clamp Fitting
Viatran technology allows for accurate pressure measurement up to 1000 PSI. The transmitter also has no moving parts, isolation diaphragm, or oil fill to contaminate your process fluid.
