Detachable Level Transmitters

The DLT™ Series allow for a quick sensor swap without the removal of your entire installed cable run. No special tools are required. Simply pull up the cable and uncouple the sensor head to replace. This makes troubleshooting, repair or replacement quick and simple.

Model 593 (illustrated below) is a Detachable Level Transmitters specifically designed to meet the challenging demand of liquid level measurement. Shown with the protective cover removed, the rugged ceramic diaphragm allows use without a protective cage. If you prefer to use a cage, please see Sharkcage™ option for Models 593, 595 and 596.

Model 590 Detachable Level Transmitter

0-40″ thru 835′ WC, PUR Cable Standard, Stainless Steel Sensor and Housing

The Model 590 Detachable Level Transmitter allows for a quick sensor swap without the removal of the installed polyurethane standard cable. PVC and FEP cables are also available. 590/591 have the deepest level rating at 835′. Sensor head and/or cable can be ordered separately. A complete range of accessories for use in level applications are available, many from stock.

Model 591 Detachable Level Transmitter

0-40″ thru 835′ WC, High Accuracy, PUR Cable Standard, Stainless Steel Sensor and Housing

The Model 591 Detachable Level Transmitter is similar to the 590, but provides a higher accuracy solution. Detachable design allows for a quick sensor swap without the removal of the installed polyurethane standard cable. PVC and FEP cables are also available. 590/591 have the deepest level rating at 835′. Sensor head and/or cable can be ordered separately. A complete range of accessories for use in level applications are available, many from stock.

Model 592 Detachable Level Transmitter

0-40″ thru 335′ WC, PUR Cable Standard, PP-HT Housing, Stainless Steel Sensor

The Model 592 allows for a quick sensor swap without the removal of the installed polyurethane standard cable. Common configurations in 592 series are stock items. PVC, TPE and FEP cables are also available. Sensor head and/or cable can be ordered separately. A complete range of accessories for use in level applications are available, many from stock.

Model 593 Detachable Level Transmitter

0-16″ thru 335′ WC, PUR Cable Standard, Stainless Steel Housing, Ceramic Sensor, Lowest Level Rating

The Model 593 allows for a quick sensor swap without the removal of the installed polyurethane standard cable. PVC, TPE and FEP cables are also available. Sensor head and/or cable can be ordered separately. A complete range of accessories for use in level applications are available, many from stock.

Model 595 Detachable Level Transmitter

0-16″ thru 335′ WC, PUR Cable Standard, PVC Housing, Ceramic Sensor, Lowest Level Rating

The Model 595 allows for a quick sensor swap without the removal of the installed polyurethane standard cable. PVC or FEP cables are also available. Sensor head and/or cable can be ordered separately. A complete range of accessories for use in level applications are available, many from stock.

Model 596 Detachable Level Transmitter

0-32″ thru 0-335′ WC, PUR Cable Standard, Stainless Steel Housing, Ceramic Sensor, RapidShip

The Viatran Model 596 DLT is a submersible level transmitter specifically designed to meet the challenging demands of liquid measurement. The ability to detach the sensor can be an enormous time saver when or if it’s ever needed.
Ranges can be set from 0-32 Inches W.C. to 0-335 Feet W.C. or equivalent in Meters or PSI by Viatran at the time of manufacturing This capability allows Viatran to rapidly ship the transmitter within one or two days. No need for you to carry excess inventory.

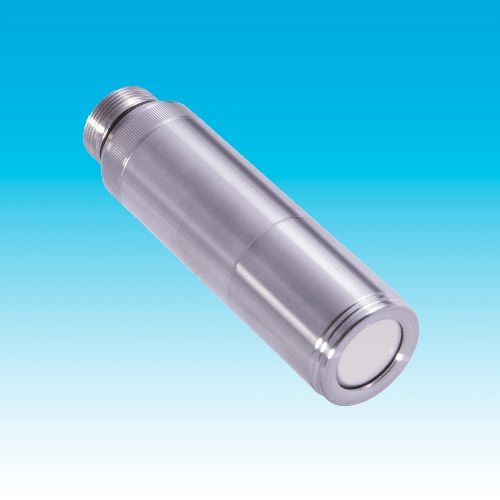

Model 596 Sensor Head Replacement

0-32″ thru 0-335′ WC, Stainless Steel Housing, Ceramic Sensor, RapidShip

The Viatran Model 596 DLT Sensor Head is available in
ranges that can be set from 0-32 Inches W.C. to 0-335 Feet W.C. or equivalent in Meters or PSI by Viatran at the time of manufacturing This capability allows Viatran to rapidly ship the replacement Sensor Head within one or two days. No need for you to carry excess inventory.

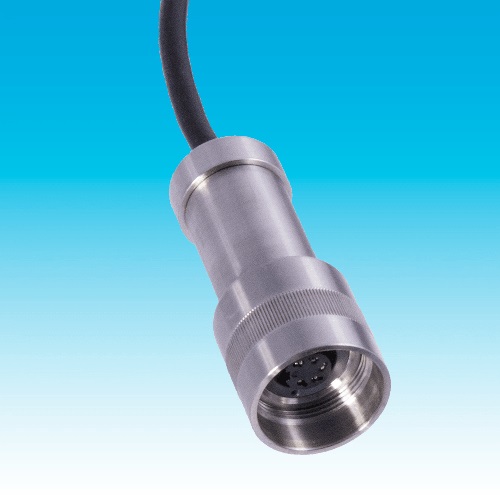

Model DLT Cable Replacement

Stainless Steel Connector, RapidShip

Viatran stocks six of the most popular polyurethane cable sizes in lengths up to 150 feet (46 meters). This capability allows Viatran to rapidly ship the replacement cable within one or two days. No need for you to carry excess inventory.
