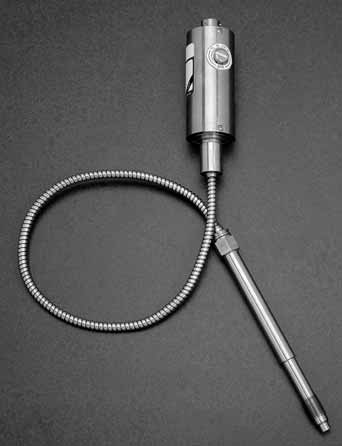

MRT462 Series
Now, users can select from among four pressure ranges on one transducer with the new Dynisco MRT, the first multi-range pressure transducer. By simply turning a rotary switch via an access pot on the transducer, four potential pressure ranges can be selected. The transducer can be ordered so that the equivalent psi, bar, Kg/cm2 or MPa ranges can be chosen. This revolutionary melt pressure transducer offers maximum versatility to handle changing process conditions and materials.
- Accuracy of better than ±1.0%
- Reliable pressure measurement
- Four user selectable pressure ranges in one model
- Maximizes inventory flexibility
- Externally selectable range via rotary switch
- Maximum versatility for changing process conditions
- 3.33 mV/V FSO for selected range
- Standard low level output
- Internal 80% shunt calibration
- Easy set-up
- All stainless steel wetted parts
- Corrosion resistant
- Proven sensor design
- Good stability and repeatability
