0-20′ thru 670′ WC, PUR Cable Standard, PP-HT Housing, Ceramic Sensor, Slim Design

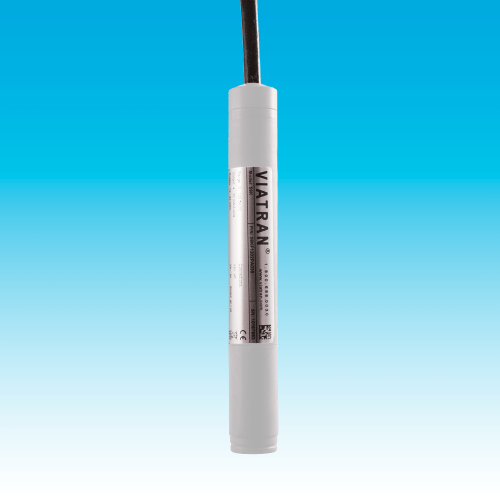

The Model 59K Submersible Level Transmitter provides Depth and Level measurements while submerged in harsh or aggressive media. Well suited for chemical tank volume or level monitoring.
Features
IP-68 Rated
RoHS Compliant
Low Pressure Applications
Polypropylene – High Temperature Body
The Model 59K PP-HT Slim Submersible Level Transmitter has a .830″ diameter PP-HT housing and ceramic sensor.
Polyurethane cable is standard.
Different cable materials and o rings are available.
Use it to measure Liquid Level and Depth for Water and Waste Water applications, Lift Stations, Reservoirs and Dams, Rivers, Holding Ponds, Wells, In-ground/Above Ground Tanks and with Inventory Tank Gauging.
Viatran also offers a complete range of accessories for use in level applications such as a surge protector, cable hangers and weights, meters and junction boxes.
Pressure Ranges: 0-20 Feet W.C. to 0-670 Feet W.C.
Combined Accuracy (Non-Linearity, Hysteresis, Repeatability): ≤±0.50% FSO
Compensated Temperature Range: -13° to 158° F (-25 to 70° C)
Operating Temperature Range: 14° to 122° F (-25 to 50° C) **Note: Medium must not freeze near sensor
Storage Temperature Range: -13° to 122° F (-25to 50° C)
Thermal Effect on Zero: ≤±0.23% FSO per 100° F
Thermal Effect on Span: ≤±0.23% FSO per 100° F
Pressure Connection: Removable Protective POM Cap
Ingress Protection: IP 68
Overpressure Limit: 1.6x Minimum
Weight: 0.25 lbs. (without cable)
Housing: PP-HT
Sensor Diaphragm: Ceramic Al2O3 96%
Cable: PUR, PVC, or FEP (customer must specify)
Seals: FKM
Removable Protective Cap: POM (Polyoxymethylene)
EA: Special Calibration Run
PW: Calibrate item with meter/display
